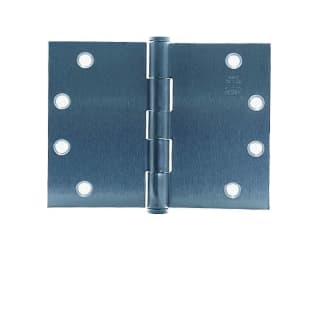

Bommer 5000 Series 3-1/2" x 5" Wide Throw Mortise Specialty Plain Bearing Door Hinge - Single

Features:

• Includes 1 (one) hinge in each order
• Configured with precisely machined square corners
• Includes a removable pin
• Constructed with 8 holes arranged in a arc pattern
• Bommer offers a limited 1 year manufacturer warranty

Product Technologies:

• Plain Bearing Hinge: Plain bearing hinges feature knuckles that are machined to a smooth surface, allowing them to move against one another without bearings. Plain bearing hinges are not recommended for heavy use on high traffic entrance ways, but meet the need of a standard residential door.

• Mortise Hinge: Mortise door hinges mount flush with the surface of your door, providing maximum strength with the least interference with door functionality. It is recommended that three hinges be used on doors up to and including 7-1/2 feet, with one additional hinge for each additional 2-1/2 feet. Be sure to check your current hinges before making a purchase.

• Material - Steel: Steel is strong, durable and inexpensive; making it a favorite for hinges of all types. Steel is slightly more prone to rusting than solid brass or stainless steel.

Specifications:

• Height: 3-1/2"
• Width: 5"
• Material: Steel
• Mount Type: Mortise
• Number of Knuckles: 5
• Number of Screw Holes: 8
• Gauge (Thickness of Hinge): 0.125"
• Removable Pin: Yes
• Quantity: 1

• 5010355 (This Model): 3-1/2" x 5" Wide Throw Specialty Door Hinge
• 5010356: 3-1/2" x 6" Wide Throw Specialty Door Hinge
• 5010455: 4-1/2" x 5" Wide Throw Specialty Door Hinge
