Item # bci3415505

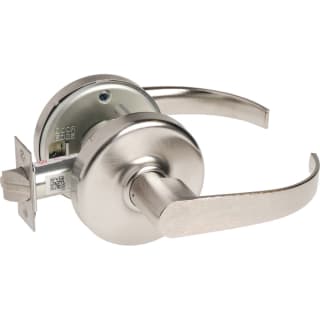

Corbin Russwin Commercial Grade 1 Extra Heavy Duty Passage Lever Set with PZD Trim

Model: CL3310-PZD-626

$402.28
Finish: Choose Finish
  • Oil Rubbed Bronze
    Oil Rubbed Bronze
    $410.52
    Special Order
  • Satin Brass
    Satin Brass
    $307.50
    Special Order
  • Satin Chrome
    Satin Chrome
    $402.28
    Special Order

Free Shipping!

Special Order

Product Overview

Corbin Russwin is represented by ASSA ABLOY Door Security Solutions

Lock Function:

  • Passage door hardware has no locking mechanism
  • Both the interior and exterior handles are always free turning
  • Can be used in conjunction with a deadbolt

Features:

  • Exceeds criteria for BHMA Grade 1
  • All metal construction for enhanced durability and security
  • Reversible handing for easy installation
  • Includes a 7 year limited warranty
  • UL listed 3 hour rating
  • Compliant with Americans with Disabilities Act (ADA)

Specifications:

  • Backset: 2-3/4"
  • Cross Bore: 2-1/8"
  • Edge Bore: 1"
  • Handing: Reversible, Left or Right
  • Door Thickness: 1-3/4" to 2"
  • Handle Length: 5"
  • Trim Projection: 2-13/16"
  • Trim Width: 3-1/2"
  • Trim Height: 3-1/2"
  • Latch Faceplate: Square Corner
  • Product Weight: 5.3 lbs.
  • Material: Brass, Bronze, Steel, Zinc

This product is listed under the following manufacturer number(s):

Manufacturer Resources

Dimensions and Measurements

Backset
2-3/4"
Cross Bore
2-1/8"
Door Thickness
1-3/4", 1-7/8", 2"
Edge Bore
1"
Handle Length
5 in.
Handle Projection
2.8125 in.
Product Weight
5.3 lbs.
Trim Height
3.5 in.
Trim Width
3.5 in.

Included Components

28 Degree Latch
No

Characteristics and Features

Concealed Screws
Yes
Function
Passage
Handing
Left, Reversible, Right
Latch Faceplate
Square Corner
Lever Shape
Straight
Material
Brass, Bronze, Steel, Zinc
Rosette Shape
Round
Theme
Transitional

Warranty and Product Information

ADA
Yes
ANSI Certification
A156.2
Approved for Commercial Use
Yes
BHMA Certification
Grade 1
Certifications
ANSI, UL
Collection
Princeton
Country Of Origin
USA
Fire Rated
Yes
Made in America
Yes
Manufacturer Warranty
7 Year Limited
Series
CL3300
