Item # bci3415510

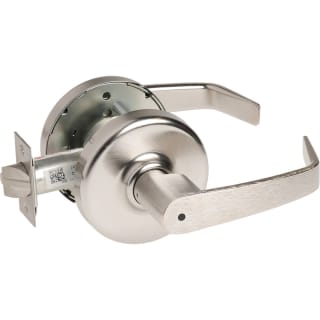

Corbin Russwin Commercial Panic Proof Grade 1 Extra Heavy Duty Privacy Lever Set with NZD Trim
Model: CL3320-NZD-626
from the CL3300 Collection
$458.93
Finish: Choose Finish
- Oil Rubbed Bronze$469.382 In Stock
- Polished Brass$299.27Special Order
- Satin Bronze$469.38Special Order
- Satin Chrome$458.9324 In Stock
- Satin Chrome / MicroShield$496.24Special Order
Free Shipping!

Product Overview
Corbin Russwin is represented by ASSA ABLOY Door Security Solutions
Lock Function:
- Latchbolt operated by handle either side
- Outside handle locked by push button
- Outside handle unlocked by emergency release tool, by rotating inside handle or by closing door
- Inside handle always free
- Allows for free egress
Features:
- Exceeds criteria for BHMA Grade 1
- All metal construction for enhanced durability and security
- Reversible handing for easy installation
- Includes a 7 year limited warranty
- UL listed 3 hour rating
- Compliant with Americans with Disabilities Act (ADA)
Specifications:
- Backset: 2-3/4"
- Cross Bore: 2-1/8"
- Edge Bore: 1"
- Handing: Reversible, Left or Right
- Door Thickness: 1-3/4" to 2"
- Handle Length: 4-1/2"
- Trim Projection: 2-13/16"
- Trim Width: 3-1/2"
- Trim Height: 3-1/2"
- Latch Faceplate: Square Corner
- Product Weight: 5.3 lbs.
- Material: Brass, Bronze, Steel, Zinc
Additional Corbin Russwin Links
This product is listed under the following manufacturer number(s):
- Corbin Russwin CL3320-NZD-613
Oil Rubbed Bronze - Corbin Russwin CL3320-NZD-605
Polished Brass - Corbin Russwin CL3320-NZD-612
Satin Bronze - Corbin Russwin CL3320-NZD-626
Satin Chrome - Corbin Russwin CL3320-NZD-626C
Satin Chrome / MicroShield
Manufacturer Resources
Dimensions and Measurements
Backset
2-3/4"
Cross Bore
2-1/8"
Door Thickness
1-3/4", 1-7/8", 2"
Edge Bore
1"
Handle Length
4.5 in.
Handle Projection
2.8125 in.
Product Weight
5.3 lbs.
Trim Height
3.5 in.
Trim Width
3.5 in.
Included Components
28 Degree Latch
No
Characteristics and Features
Concealed Screws
Yes
Function
Privacy
Handing
Left, Reversible, Right
Latch Faceplate
Square Corner
Lever Shape
Straight
Locking Mechanism
Push Button
Material
Brass, Bronze, Steel, Zinc
Panic Proof
Yes
Rosette Shape
Round
Theme
Transitional
Warranty and Product Information
ADA
Yes
ANSI Certification
A156.2
Approved for Commercial Use
Yes
BHMA Certification
Grade 1
Certifications
ANSI, UL
Collection
Newport
Country Of Origin
USA
Fire Rated
Yes
Made in America
Yes
Manufacturer Warranty
7 Year Limited
Series
CL3300
