Item # bci3415746
Corbin Russwin is represented by ASSA ABLOY Door Security Solutions

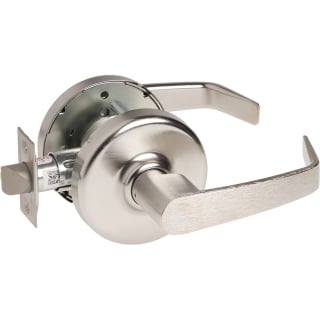

- Passage door hardware has no locking mechanism
- Both the interior and exterior handles are always free turning
- Can be used in conjunction with a deadbolt
- Exceeds criteria for BHMA Grade 2
- All metal construction for enhanced durability and security
- Reversible handing for easy installation
- Includes a 1 year limited warranty
- UL listed 3 hour rating
- Compliant with Americans with Disabilities Act (ADA)
- Backset: 2-3/8"
- Cross Bore: 2-1/8"
- Edge Bore: 1"
- Handing: Reversible, Left or Right
- Door Thickness: 1-3/8" to 1-7/8"
- Handle Length: 4-1/2"
- Trim Projection: 2-13/16"
- Trim Width: 3-1/2"
- Trim Height: 3-1/2"
- Latch Faceplate: Square Corner
- Product Weight: 3.2 lbs.
- Material: Brass, Steel, Zinc
This product is listed under the following manufacturer number(s):
- Corbin Russwin CL3810-NZD-626-SC114-B238
Dimensions and Measurements
1-1/2", 1-3/4", 1-3/8", 1-5/8", 1-7/8"
28 Degree Latch
Characteristics and Features
Left, Reversible, Right
Brass, Steel, Zinc
Warranty and Product Information
Approved for Commercial Use
Country Of Origin
Made in America
1 Year Limited
