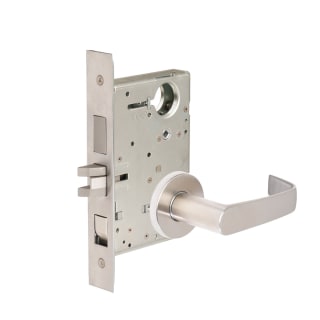

Item # bci3416048
Corbin Russwin is represented by ASSA ABLOY Door Security Solutions
- Latchbolt operated by key outside or by handle either side, unless outside handle is locked by toggle-action stop
- Inside handle free when deadbolt is retracted
- Deadbolt thrown or retracted by key outside or by thumbturn inside
- Does not allow for free egress
- Exceeds criteria for BHMA Grade 1
- All metal construction for enhanced durability and security
- Reversible handing for easy installation
- Includes a 10 year limited warranty
- UL listed 3 hour rating
- Compliant with Americans with Disabilities Act (ADA)
- Backset: 2-3/4"
- Handing: Left, Left Hand Reverse, Right, Right Hand Reverse
- Door Thickness: 1-3/4"
- Handle Length: 4-13/16"
- Trim Projection: 2-5/8"
- Trim Width: 2-1/4"
- Trim Height: 2-1/4"
- Cylinder Included: No
- Latch Faceplate: Square Corner
- Product Weight: 6.25 lbs.
- Material: Brass, Stainless Steel, Steel
This product is listed under the following manufacturer number(s):
- Corbin Russwin ML2048-NSA-626-LC
Dimensions and Measurements
Characteristics and Features
Left, Left Hand Reverse, Right, Right Hand Reverse
Thumbturn, Trim Lock
Brass, Stainless Steel, Steel
Warranty and Product Information
Approved for Commercial Use
Country Of Origin
Made in America
10 Year Limited
