Item # bci3416055

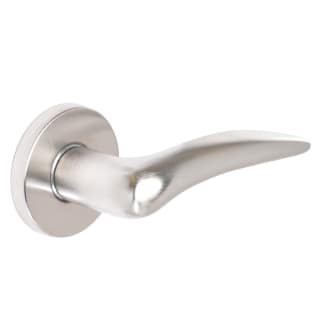

Corbin Russwin Commercial Fire Rated Grade 1 Left Handed Single Dummy Lever with DSA Trim

Model: ML2050-DSA-626-L

from the ML2000 Collection
$307.71
Finish: Choose Finish
  • Satin Chrome
  • Satin Chrome
    Satin Chrome
    $307.71
    Special Order

Free Shipping!

Special Order
Configure Your Corbin Russwin ML2050DSAL Commercial Fire Rated Grade 1 Left Handed Single Dummy Lever with DSA Trim

  • Handing

    Certain products are Handed and require a Right or Left designation. When facing your door from the exterior side, whichever side that the hinges are on determines the handing.
    Please Select One
$307.71

Product Overview

Corbin Russwin is represented by ASSA ABLOY Door Security Solutions

Function:

  • Dummy door hardware is surface mounted with no locking mechanism
  • Includes a single dummy handle
  • May be paired with passage or keyed entry for double door

Features:

  • Exceeds criteria for BHMA Grade 1
  • All metal construction for enhanced durability and security
  • Designed for use with left handed doors
  • Includes a 10 year limited warranty
  • UL listed 3 hour rating
  • Compliant with Americans with Disabilities Act (ADA)

Specifications:

  • Handing: Left
  • Door Thickness: 1-3/4"
  • Handle Length: 4-1/2"
  • Trim Projection: 2-9/16"
  • Trim Width: 2-1/4"
  • Trim Height: 2-1/4"
  • Product Weight: 1.6 lbs.
  • Material: Brass, Stainless Steel, Steel

This product is listed under the following manufacturer number(s):

Manufacturer Resources

Dimensions and Measurements

Door Thickness
1-3/4"
Handle Length
4.5 in.
Product Weight
1.6 lbs.
Trim Height
2.5625 in.
Trim Width
2.5625 in.

Included Components

28 Degree Latch
No

Characteristics and Features

Concealed Screws
Yes
Function
Single Dummy
Handing
Left
Lever Shape
Wave, Round
Material
Brass, Stainless Steel, Steel
Rosette Shape
Round
Theme
Transitional

Warranty and Product Information

ADA
Yes
ANSI Certification
A156.13
Approved for Commercial Use
Yes
BHMA Certification
Grade 1
Certifications
ANSI, UL
Collection
Dirke
Country Of Origin
USA
Fire Rated
Yes
Made in America
Yes
Manufacturer Warranty
10 Year Limited
Series
ML2000
