Item # bci3416203

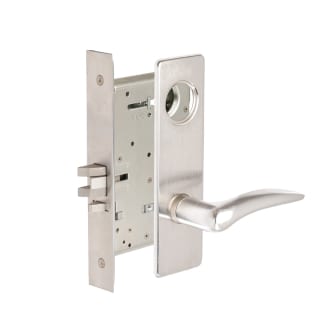

Corbin Russwin Commercial Fire Rated Panic Proof Grade 1 Left Handed Keyed Entry Storeroom Mortise Lever Set with DSM Trim - Less Cylinder

Model: ML2057-DSM-626-L-LC

from the ML2000 Collection
$748.46
Finish: Choose Finish
  • Satin Chrome
  • Satin Chrome
    Satin Chrome
    $748.46
    Special Order

Free Shipping!

Special Order
Configure Your Corbin Russwin ML2057DSMLLC Commercial Fire Rated Panic Proof Grade 1 Left Handed Keyed Entry Storeroom Mortise Lever Set with DSM Trim - Less Cylinder

  • Free Keying Option

    Select "Keyed Alike" to use the same key on multiple locks, "Keyed Different" for unique keys, or enter a key code (Typically a 5 digit number) to match this lock to pre-owned locks. Locksmiths can identify key codes on pre-owned locks.

    Please Select One

  • Handing

    Certain products are Handed and require a Right or Left designation. When facing your door from the exterior side, whichever side that the hinges are on determines the handing.
    Please Select One
$748.46

Product Overview

Corbin Russwin is represented by ASSA ABLOY Door Security Solutions

Lock Function:

  • Latchbolt operated by handle inside or by key outside
  • Outside handle always rigid
  • Inside handle always free
  • Auxiliary latch deadlocks the latchbolt
  • Allows for free egress

Features:

  • Exceeds criteria for BHMA Grade 1
  • All metal construction for enhanced durability and security
  • Designed for use with left handed doors
  • Includes a 10 year limited warranty
  • UL listed 3 hour rating
  • Compliant with Americans with Disabilities Act (ADA)

Specifications:

  • Backset: 2-3/4"
  • Handing: Left
  • Door Thickness: 1-3/4"
  • Handle Length: 4-1/2"
  • Trim Projection: 2-9/16"
  • Trim Height: 7-1/2"
  • Trim Width: 2-1/4"
  • Cylinder Included: No
  • Latch Faceplate: Square Corner
  • Product Weight: 6.25 lbs.
  • Material: Brass, Stainless Steel, Steel

This product is listed under the following manufacturer number(s):

Manufacturer Resources

Dimensions and Measurements

Backset
2-3/4"
Door Thickness
1-3/4"
Handle Length
4.5 in.
Handle Projection
2.5625 in.
Product Weight
6.25 lbs.
Trim Height
7.5 in.
Trim Width
2.25 in.

Included Components

Cylinder Included
No

Characteristics and Features

Concealed Screws
Yes
Cylinder Type
Single Cylinder
Function
Storeroom
Handing
Left
Latch Faceplate
Square Corner
Material
Brass, Stainless Steel, Steel
Panic Proof
Yes
Rosette Shape
Rectangle
Shape
Wave
Theme
Transitional

Warranty and Product Information

ADA
Yes
ANSI Certification
A156.13
Approved for Commercial Use
Yes
BHMA Certification
Grade 1
Certifications
ANSI, UL
Collection
Dirke
Country Of Origin
USA
Fire Rated
Yes
Made in America
Yes
Manufacturer Warranty
10 Year Limited
Series
ML2000
