Item # bci3415716

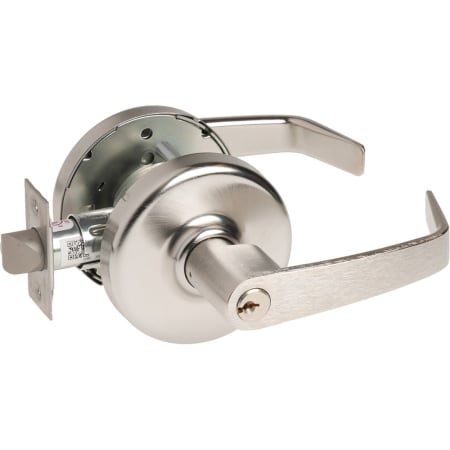

Corbin Russwin Commercial Panic Proof Grade 1 Heavy Duty Keyed Entry Single Cylinder Storeroom Lever Set with NZD Trim

Model: CL3557-NZD-626

from the CL3500 Collection
$572.00
Finish: Choose Finish
  • Oil Rubbed Bronze
  • Polished Brass
  • Polished Chrome
  • Satin Brass
  • Satin Bronze
  • Satin Chrome
  • Oil Rubbed Bronze
    Oil Rubbed Bronze
    $582.42
    12 In Stock
  • Polished Brass
    Polished Brass
    $582.42
    11 In Stock
  • Polished Chrome
    Polished Chrome
    $582.42
    6 In Stock
  • Satin Brass
    Satin Brass
    $582.42
    5 In Stock
  • Satin Bronze
    Satin Bronze
    $582.42
    5 In Stock
  • Satin Chrome
    Satin Chrome
    $572.00
    4 In Stock

Free Shipping!

4 In Stock
Configure Your Corbin Russwin CL3557NZDKR Commercial Panic Proof Grade 1 Heavy Duty Keyed Entry Single Cylinder Storeroom Lever Set with NZD Trim

  • Free Keying Option

    Select "Keyed Alike" to use the same key on multiple locks, "Keyed Different" for unique keys, or enter a key code (Typically a 5 digit number) to match this lock to pre-owned locks. Locksmiths can identify key codes on pre-owned locks.

    Please Select One
$572.00

Product Overview

Corbin Russwin is represented by ASSA ABLOY Door Security Solutions

Lock Function:

  • Latchbolt operated by key in outside handle or by rotating inside handle
  • Outside handle always rigid
  • Inside handle always free
  • Allows for free egress

Features:

  • Exceeds criteria for BHMA Grade 1
  • All metal construction for enhanced durability and security
  • Reversible handing for easy installation
  • Includes a 7 year limited warranty
  • UL listed 3 hour rating
  • Compliant with Americans with Disabilities Act (ADA)

Specifications:

  • Backset: 2-3/4"
  • Cross Bore: 2-1/8"
  • Edge Bore: 1"
  • Handing: Reversible, Left or Right
  • Door Thickness: 1-3/8" to 1-3/4"
  • Handle Length: 4-1/2"
  • Trim Projection: 2-13/16"
  • Trim Width: 3-1/2"
  • Trim Height: 3-1/2"
  • Interchangeable Core: No
  • Cylinder Included: Yes
  • Cylinder: 6 Pin L4
  • Latch Faceplate: Square Corner
  • Product Weight: 4.3 lbs.
  • Material: Brass, Bronze, Steel, Zinc

This product is listed under the following manufacturer number(s):

Manufacturer Resources

Dimensions and Measurements

Backset
2-3/4"
Cross Bore
2-1/8"
Door Thickness
1-1/2", 1-3/4", 1-3/8", 1-5/8"
Edge Bore
1"
Handle Length
4.5 in.
Handle Projection
2.8125 in.
Product Weight
4.3 lbs.
Trim Height
3.5 in.
Trim Width
3.5 in.

Included Components

28 Degree Latch
No
Cylinder Included
Yes
Interchangeable Core
No

Characteristics and Features

Concealed Screws
Yes
Cylinder
6 Pin L4
Cylinder Type
Single Cylinder
Function
Keyed Entry, Storeroom
Handing
Left, Reversible, Right
Keyway
L4
Latch Faceplate
Square Corner
Lever Shape
Straight
Material
Brass, Bronze, Steel, Zinc
Number of pins
6
Panic Proof
Yes
Rosette Shape
Round
Theme
Transitional

Warranty and Product Information

ADA
Yes
ANSI Certification
A156.2
Approved for Commercial Use
Yes
BHMA Certification
Grade 1
Certifications
ANSI, UL
Collection
Newport
Country Of Origin
USA
Fire Rated
Yes
Made in America
Yes
Manufacturer Warranty
7 Year Limited
Series
CL3500
