Item # bci3416001

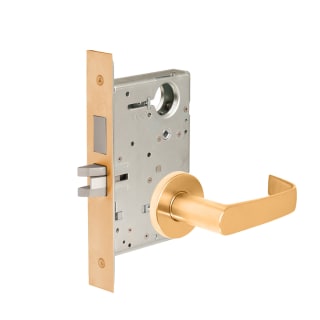

Corbin Russwin Fire Rated Panic Proof Grade 1 Commercial Privacy Deadbolt Mortise Lever Set with NSA Trim
Model: ML2030-NSA-612
from the ML2000 Collection
$764.85
Finish: Choose Finish
- Oil Rubbed Bronze$764.85Special Order
- Satin Bronze$764.85Special Order
- Satin Chrome$749.72Special Order
- Satin Stainless Steel$764.85Special Order
Free Shipping!

Product Overview
Corbin Russwin is represented by ASSA ABLOY Door Security Solutions
Lock Function:
- Latchbolt operated by handle either side, unless outside handle locked by thumbturn
- Inside handle simultaneously retracts latchbolt and deadbolt and unlocks outside
- Deadbolt thrown or retracted by thumbturn inside or by emergency release tool outside
- Allows for free egress
Features:
- Exceeds criteria for BHMA Grade 1
- All metal construction for enhanced durability and security
- Reversible handing for easy installation
- Includes a 10 year limited warranty
- UL listed 3 hour rating
- Compliant with Americans with Disabilities Act (ADA)
Specifications:
- Backset: 2-3/4"
- Handing: Left, Left Hand Reverse, Right, Right Hand Reverse
- Door Thickness: 1-3/4"
- Handle Length: 4-13/16"
- Trim Projection: 2-5/8"
- Trim Width: 2-1/4"
- Trim Height: 2-1/4"
- Latch Faceplate: Square Corner
- Product Weight: 6.25 lbs.
- Material: Brass, Bronze, Stainless Steel, Steel
Additional Corbin Russwin Links
This product is listed under the following manufacturer number(s):
- Corbin Russwin ML2030-NSA-613
Oil Rubbed Bronze - Corbin Russwin ML2030-NSA-612
Satin Bronze - Corbin Russwin ML2030-NSA-626
Satin Chrome - Corbin Russwin ML2030-NSA-630
Satin Stainless Steel
Manufacturer Resources
Dimensions and Measurements
Backset
2-3/4"
Door Thickness
1-3/4"
Handle Length
4.8125 in.
Handle Projection
2.625 in.
Product Weight
6.25 lbs.
Trim Height
2.25 in.
Trim Width
2.25 in.
Characteristics and Features
Concealed Screws
Yes
Function
Privacy
Handing
Left, Left Hand Reverse, Right, Right Hand Reverse
Latch Faceplate
Square Corner
Locking Mechanism
Thumbturn
Material
Brass, Bronze, Stainless Steel, Steel
Panic Proof
Yes
Rosette Shape
Round
Shape
Straight
Theme
Transitional
Warranty and Product Information
ADA
Yes
ANSI Certification
A156.13
Approved for Commercial Use
Yes
BHMA Certification
Grade 1
Certifications
ANSI, UL
Collection
Newport
Country Of Origin
USA
Fire Rated
Yes
Made in America
Yes
Manufacturer Warranty
10 Year Limited
Series
ML2000
